Daniel Mitchell Key Takeaways
- The spider arm holds the drum on its shaft, so a failed one turns a washer repair into a drum-assembly job.
- This site prints the bearing and seal job from $400 and lists the spider arm with it, not as a standalone price.
- A diagnostic visit separates bearings, spider and shock absorbers before any parts are ordered.
- Under about 10 years of age a drum repair usually makes sense; over 15 years replacement often wins.
- The final price is confirmed after on-site diagnosis, with a written estimate before any work begins.
The Bottom Line
A drum spider is priced as part of the drum work, not as a single part, so get an itemized written estimate and compare the total with half the cost of a new machine. Stop running the washer once the grinding is steady.

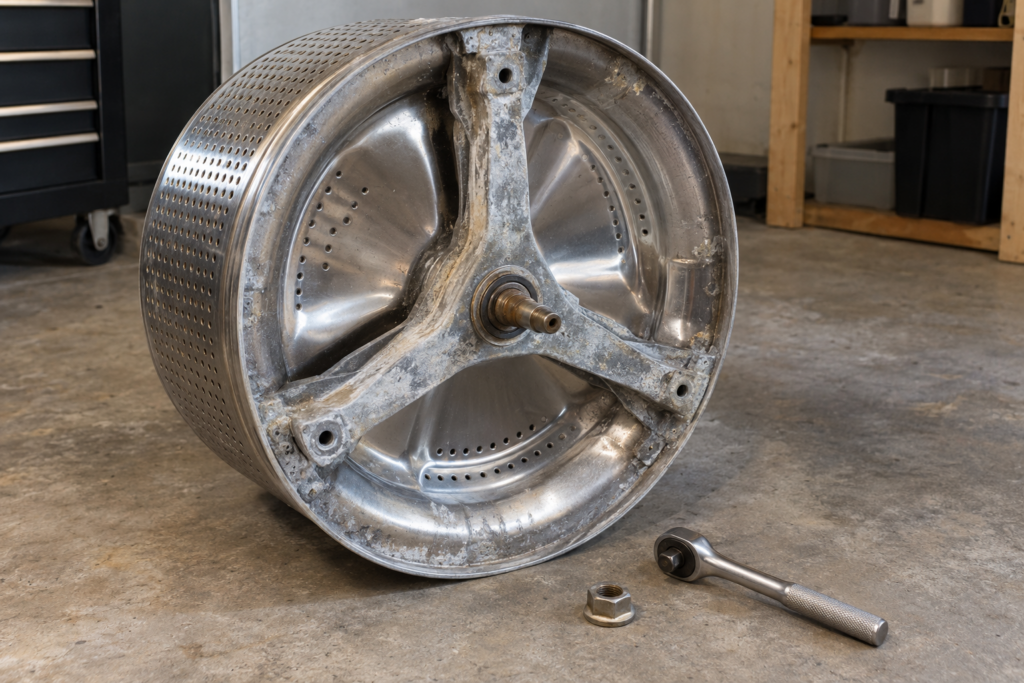

People search for the Miele drum spider because a repair estimate or a technician has used the word, and nobody has explained it. The spider arm is the metal structure at the back of the drum that holds the drum on its shaft, so when it fails the whole drum assembly is involved, and the price stops looking like a normal washer repair. This guide explains where the job sits among the other Miele washer repairs and what a sensible estimate looks like.
| Repair | What it involves | Starting price |
|---|---|---|
| Diagnostic visit | A technician finds out whether the noise is bearings, spider or something loose | from $89 |
| Drum bearings and shaft seal | The complete bearing set is replaced together with the seal | from $400 |
| Shock absorbers, pair | The usual cause of banging that is not the drum | from $160 |
| Motor replacement | A separate and smaller job than anything at the drum | from $350 |
| Drum spider arm | Priced on the written estimate once the drum is inspected | Confirmed after diagnosis |
What Is the Miele Drum Spider Replacement Cost?
There is no honest single figure, because this site does not print a standalone price for it and the job depends on what the technician finds behind the drum. What is printed is the neighboring price: replacing the bearings and shaft seal starts from $400, and the washing machine service page lists "drum bearing and spider arm replacement" as one line. The spider is therefore quoted as part of the drum work, not as a bolt-on part.
As with every price on this site, the final cost is confirmed after on-site diagnosis, with a written estimate before any work begins. Ask for the estimate to name each item separately, so you can see how much of the figure is the spider, how much is the bearing set and how much is labor.
What Does the Spider Do, and How Do You Know It Has Failed?
The spider carries the drum's weight and turns it, so a damaged one is loud. This site's guide to loud banging or grinding during the spin cycle says the spider arm can crack or break and cause loud noises, and that the repair then involves the drum itself. The symptoms overlap with worn bearings, which is why a diagnostic comes first.
- A rumbling or grinding noise that rises with spin speed is the shared symptom of bearings and spider.
- A drum that feels rough when you turn it by hand with the door open points at the rear assembly.
- Water leaking from the rear or rust-colored residue on laundry is listed on the service page as a sign of bearing failure.
- Banging only on spin with a rhythmic thud can be the shock absorbers, which cost much less to fix.
Do not run the machine to find out. The same guide warns that continued use on worn bearings damages the drum and the seal behind it, and bearings only get more expensive the longer they run.
What Moves the Price Up or Down
Three things decide where your estimate lands, and none of them is visible from the front of the machine. The first is whether the fault is only in the bearings or has reached the spider. The second is how much of the drum assembly can be reused. The third is the model, since Miele washer platforms differ more than the badge suggests.
- Bearings only: the complete bearing set and shaft seal, from $400, is the cleanest outcome.
- Spider involved: the estimate grows because the drum assembly is part of the job, and your technician confirms what can be replaced separately on your model.
- Machine age: the site's service page calls bearing failure the most common major repair after 8 to 12 years of use.
- A second fault found on the way in: a worn seal or motor brushes may be quoted alongside.
What Else Gets Blamed on the Drum
A loud washer is not always a failing spider, and the other candidates are cheaper to fix, which is the whole reason to diagnose before you accept a drum estimate. This site's noise guide separates them by sound and by what the machine does between spins.
- Shock absorbers: heavy banging or thumping on high spin, repaired as a pair, from $160 in the repair cost guide.
- A loose item or a foreign object: clunking that comes and goes, worth ruling out with the drum empty and the door seal checked.
- A worn drive belt or motor brushes: squealing, slipping or a motor that sounds strained, a smaller job than the drum.
- The motor itself: less common and usually accompanied by an error code on the display.
The practical point is that "grinding" is a symptom shared by several faults, and the drum assembly is the expensive end of the list. Genuine Miele parts are also priced above generic ones, which the repair cost guide puts at 30 to 60 percent more, so a drum job carries a parts premium that a shock absorber swap does not.
Is It Worth Repairing a Miele Washer With a Failed Spider?
Often yes on a machine under about ten years old and usually not on one over fifteen, using the 50 percent rule from this site's Miele washing machine repair costs guide. The rule says that if the total repair would exceed half the price of a comparable new Miele washer, consider replacing; the guide leans toward repairing under 10 years and toward replacing over 15, especially for major jobs such as bearings.
The same grinding-noise guide puts a new Miele front loader from $1,200, and half of the price of the machine you would actually buy is the line to hold the estimate against. A bearing job from $400 sits well under that line, and a spider on top of it is what can push an estimate toward it. That is a calculation to do with a written estimate in hand, not before it.
- Get the estimate itemized so the spider, bearings, seal and labor each have a line.
- Compare the total with half the price of a new machine of the same class.
- Weigh the age: under 10 years leans toward repair, over 15 toward replacement.
- Ask what else is worn so you are not paying for the drum and then for a motor.
For the full decision framework, Miele washing machine repair vs replace goes through it step by step, and is it worth repairing a washing machine covers age and condition.
What to Do Before You Book
Stop using the machine once the noise is a steady grind, because every extra cycle can turn a bearing job into a bigger one. Empty the drum, check the pockets and the door seal for a coin or underwire that could be making the noise, and spin the drum by hand with the door open to feel for roughness. Note the wash program and spin speed when the noise appears, since that detail narrows the diagnosis before the technician arrives.
The Miele washing machine repair service covers drum bearings and spider arms, and appliance diagnostics is the right starting point if you only know the symptom. Machines under warranty should go through warranty and parts first. When you are ready, schedule a visit and bring the model number from the rating plate.
